สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
Lishunyuan
ได้รับการรับรอง:
CE
หมายเลขรุ่น:
LY-450
เอกสาร:
วิดีโอ

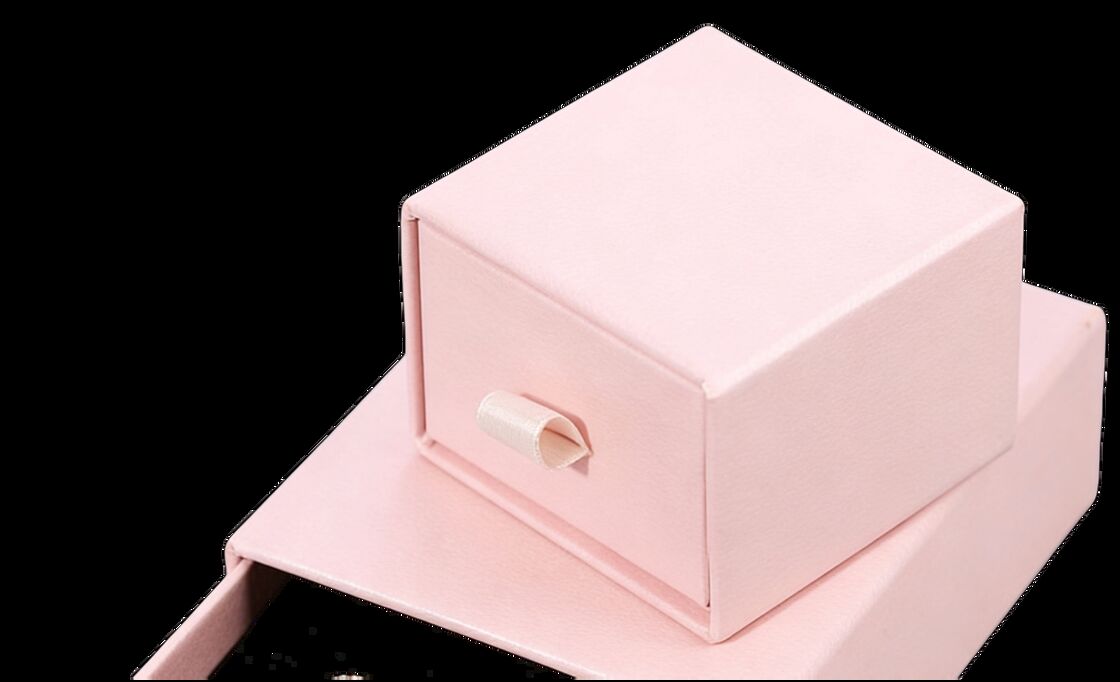

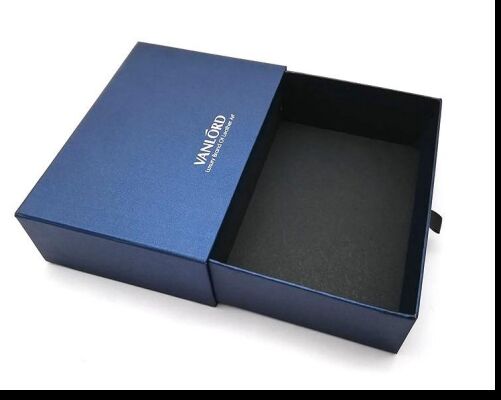

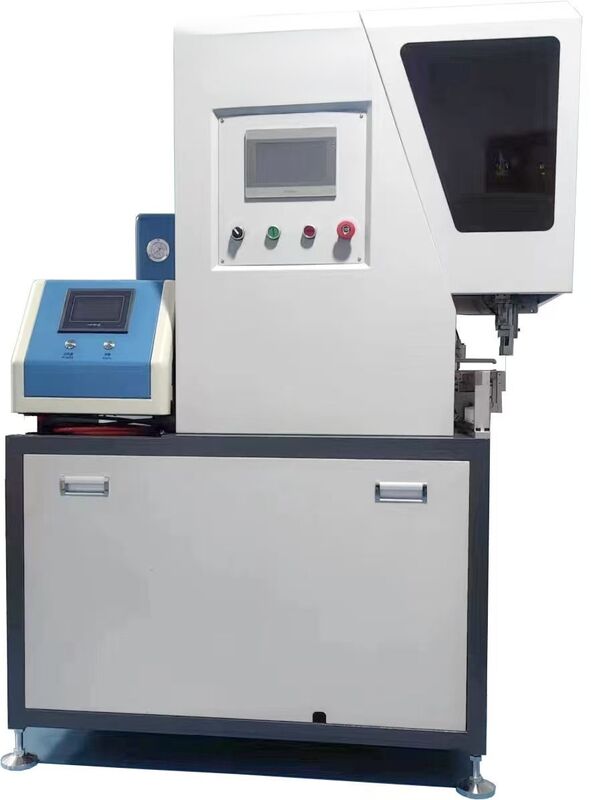

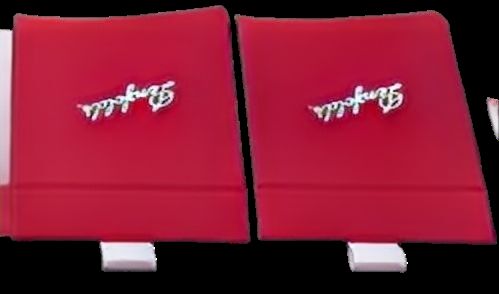

This advanced semi-automatic ribbon inserting machine integrates PLC programming technology with a touchscreen HMI interface, featuring intuitive parameter setting, real-time fault monitoring, and automatic shutdown functions. Utilizing pneumatic and servo control systems with premium international components, it delivers exceptional operational stability and ultra-low failure rates. Ideal for processing various box styles including gift boxes, drawer boxes, and folding boxes requiring ribbon application.
• Significantly reduces manual labor requirements
• Substantially improves production efficiency
• Compact footprint with easy operation
• High working speed with minimal manpower
|
Maximum Box Dimensions: |
400*450*120mm |
|
Minimum Box Dimensions: |
40*40*10mm |
|
Ribbon Width: |
5-20mm |
|
Ribbon Length (Base): |
10-60mm |
|
Ribbon Attachment Length: |
10-30mm |
|
Power Consumption: |
3.8kw |
|
Power Supply: |
220V |
|
Air Pressure Requirement |
0.6Mpa |
|
Machine Weight |
310KG |
|
Machine Dimensions |
1000*905*1615mm |
